Introduction
If you're running VMware workloads alongside AWS infrastructure, you already know the headache of stitching together backup tools that don't talk to each other. AWS Backup for VMware closes that gap. It centralizes and automates protection for VMs running on-premises or in AWS-connected VMware environments, giving infrastructure teams one policy engine instead of three separate tools.
That said, getting there isn't a single toggle switch. You still need to deploy and network the AWS Backup Gateway, configure vCenter access correctly, decide which resources actually get protected, manage encryption permissions, and prove — not assume — that restores work when you need them.
This guide walks through what real implementation looks like: security, scheduling, cost, monitoring, and restore testing — the work that separates a working backup strategy from a false sense of security.
Key Takeaways
- Confirm supported vSphere, a deployed Backup Gateway, vCenter connectivity, and scoped IAM/VMware permissions first.
- Automation combines resource selection, schedules, retention, encryption, and monitoring, not one-off snapshots.
- Verify network paths, KMS permissions, gateway health, and concurrency limits before scaling past pilot.
- Count a backup only after a successful restore; test full-VM and disk-level recovery regularly.
- Validate AWS service limits, supported versions, and pricing in current AWS docs before final design.
When Should You Use AWS Backup for VMware?
AWS Backup for VMware makes sense for organizations that want centrally managed, policy-based protection and already run workloads or governance through AWS accounts. If your team already manages IAM, networking, or storage in AWS, extending that same control plane to VMware backup avoids running a parallel, disconnected system.

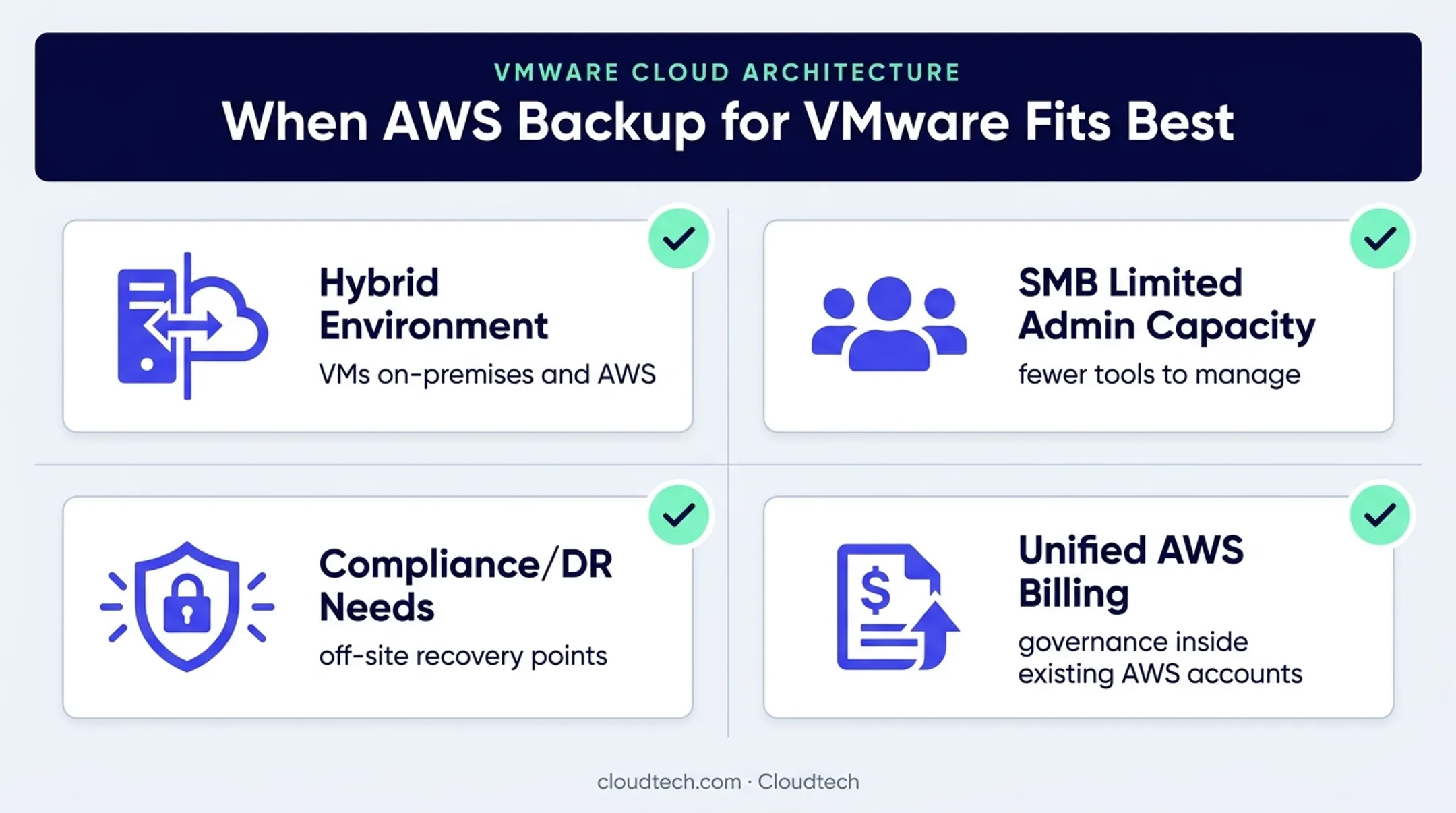

It fits particularly well when:
- You operate a hybrid environment with VMs split between on-premises VMware and AWS.
- You're an SMB team with limited backup administration capacity and want fewer tools to manage.
- Workloads require off-site recovery points for compliance or disaster recovery.
- You want backup billing and governance to live inside existing AWS accounts rather than a separate vendor console.
Where AWS Backup for VMware Is Commonly Used in Practice
Teams typically apply it to:
- Production VM protection with defined retention windows
- Development and test environment snapshots that don't need enterprise-grade replication
- Ransomware-resilient recovery points, particularly with vault lock enabled
- Compliance-driven retention for regulated data
A small VMware estate managed by an SMB team usually runs one gateway, a handful of backup plans, and manual restore checks. A larger hybrid environment needs centralized governance, cross-account or cross-Region copies, and a formal, recurring restore-testing cadence. The operational maturity looks different even though the underlying service is the same.
Know the environment differences. AWS Backup covers on-premises VMware, VMware Cloud on AWS, and VMware Cloud on AWS Outposts, but connectivity patterns and restore destinations vary by environment. AWS's virtual machine backup documentation lists supported vSphere versions (currently 8, 7.0, and 6.7) and datastore types (NFS, VMFS, VSAN). Confirm these against your specific setup before committing to a design.
AWS Backup may not be the right fit if you need:
- Granular application or file-level recovery
- Specialized replication orchestration
- Support for hypervisors beyond VMware
It's a hypervisor-level backup tool, not a file-recovery or multi-hypervisor replication platform. Scale also matters: a 200-VM estate with tight RPOs behaves very differently than a 20-VM dev environment, so weigh VM count, change rate, backup windows, and bandwidth before you commit.
What You Need Before Using AWS Backup for VMware
Before touching the console, confirm your prerequisites hold up against current documentation, not a two-year-old blog post.
On the AWS side, prepare:
- An AWS account and a Region where VMware VM protection is available (not every Region supports it)
- A backup vault, IAM roles scoped to backup operations, and an encryption decision (AWS-managed key or customer-managed KMS key)
- A VPC or private connectivity design if your security posture requires it
Check AWS's feature availability page before design work starts.
On the VMware side, prepare:
- vCenter access through a dedicated service account with only the permissions AWS Backup actually needs, not a full admin account
- A location for the gateway appliance with adequate compute and datastore capacity
- A stable, static network identity for the gateway (unstable IPs cause recurring connection failures)
Then confirm connectivity between the gateway, vCenter, ESXi hosts, AWS Backup endpoints, DNS, and routing. If your environment requires private networking, plan for an AWS Backup interface VPC endpoint.

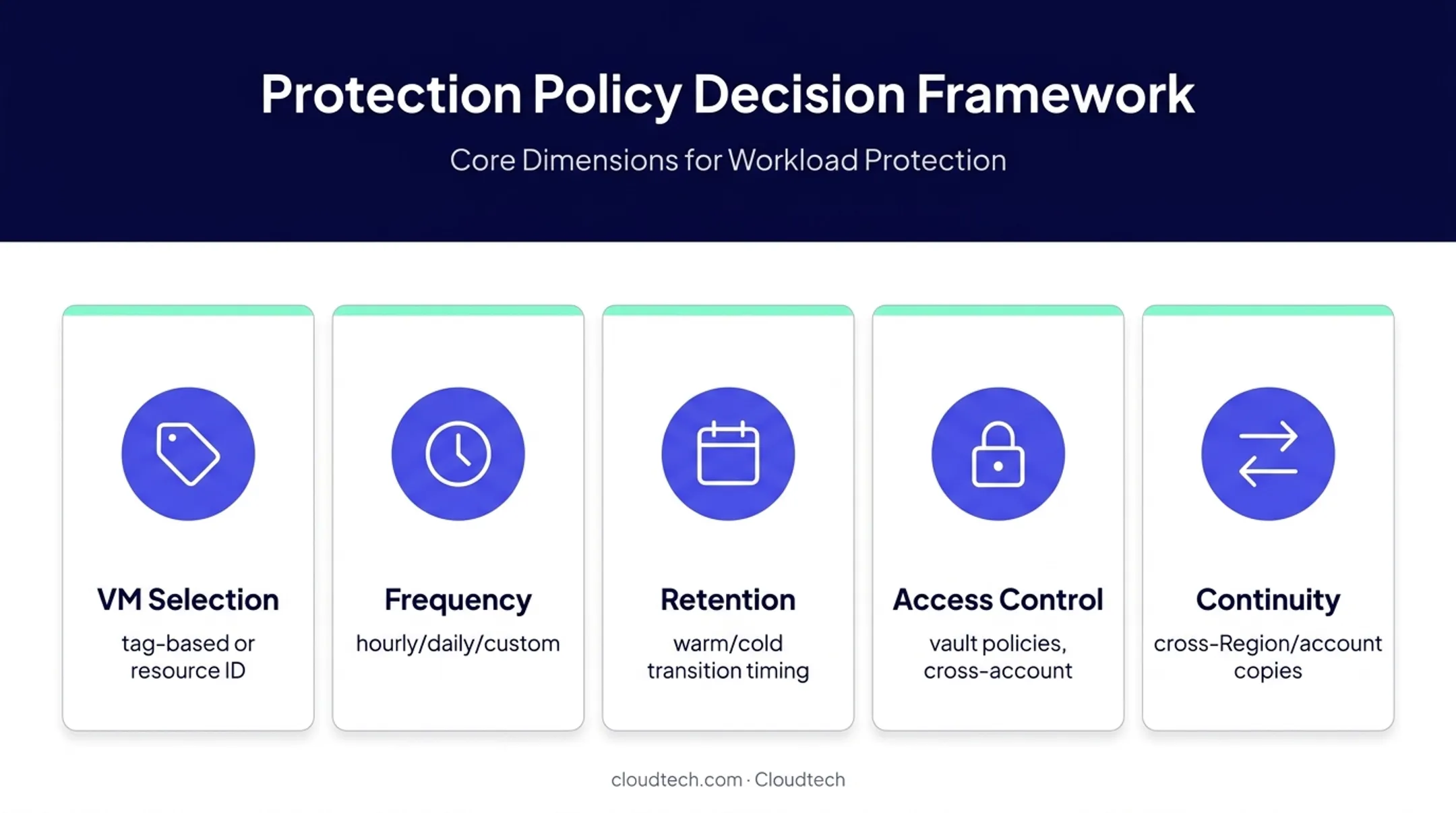

Finally, define your protection policy before deployment. That means deciding:
| Decision | What to Define |
|---|---|
| VM selection | Tag-based or explicit resource ID |
| Frequency | Hourly, daily, weekly, or custom cron |
| Retention | Warm storage duration, cold transition timing |
| Access control | Vault policies, cross-account permissions |
| Continuity | Cross-Region or cross-account copy rules |
Identify who owns each piece before go-live: AWS administrators, VMware administrators, security reviewers, and recovery owners.
If your team lacks bandwidth for this design work, an AWS consulting partner like Cloudtech can scope the architecture and hand off a working runbook while your internal team keeps ownership.
How to Use AWS Backup for VMware (Step-by-Step)
The sequence matters: establish connectivity first, register the gateway and hypervisor, define the policy, run a controlled backup, and complete a restore test before expanding VM coverage. Skipping ahead usually means troubleshooting blind later.
Setup and Preparation
- Enable VMware VM protection in AWS Backup and confirm your target Region, account, encryption configuration, and vault design.
- Deploy the AWS Backup Gateway appliance. Download the current OVF file, deploy it through vSphere's "Deploy OVF Template" workflow, and select Thick Provision Lazy Zeroed for the disk format.
- Assign network configuration — DNS, a stable IP, and adequate compute resources for the appliance.
- Record the gateway's network details and confirm that your management workstation, gateway, vCenter, ESXi hosts, and AWS endpoints can all communicate over required ports.
Common setup errors that cause problems later:
- Incorrect DNS resolution between gateway and AWS endpoints
- Blocked firewall traffic on required ports
- Unstable IP addressing on the gateway appliance
- Interface endpoints placed in the wrong network path
Register Gateway and Hypervisor
Complete registration in this order:
- Register the gateway in the AWS Backup console.
- Add the vCenter hypervisor with your dedicated service account and chosen encryption key.
- Run connection tests and confirm the hypervisor shows healthy and online before discovering VMs.
Use tags or explicit resource selection to limit protection to approved VMs. Broad, unreviewed selection — backing up your entire vCenter inventory by default — can quietly drive unexpected storage and transfer costs.
Gateway deployment and hypervisor registration are manual, one-time tasks. After the backup plan, resource assignment, and schedule are active, ongoing backup execution is automated.
Operating AWS Backup Correctly
Create a backup plan that documents:
- Schedule and backup window
- Retention period and lifecycle transitions
- Vault assignment
A typical example: daily backups at midnight, transition to cold storage after 30 days, deletion after one year.
Assign VMware VMs with tags or resource identifiers, then verify the intended VMs are included — not the full vCenter inventory by accident.

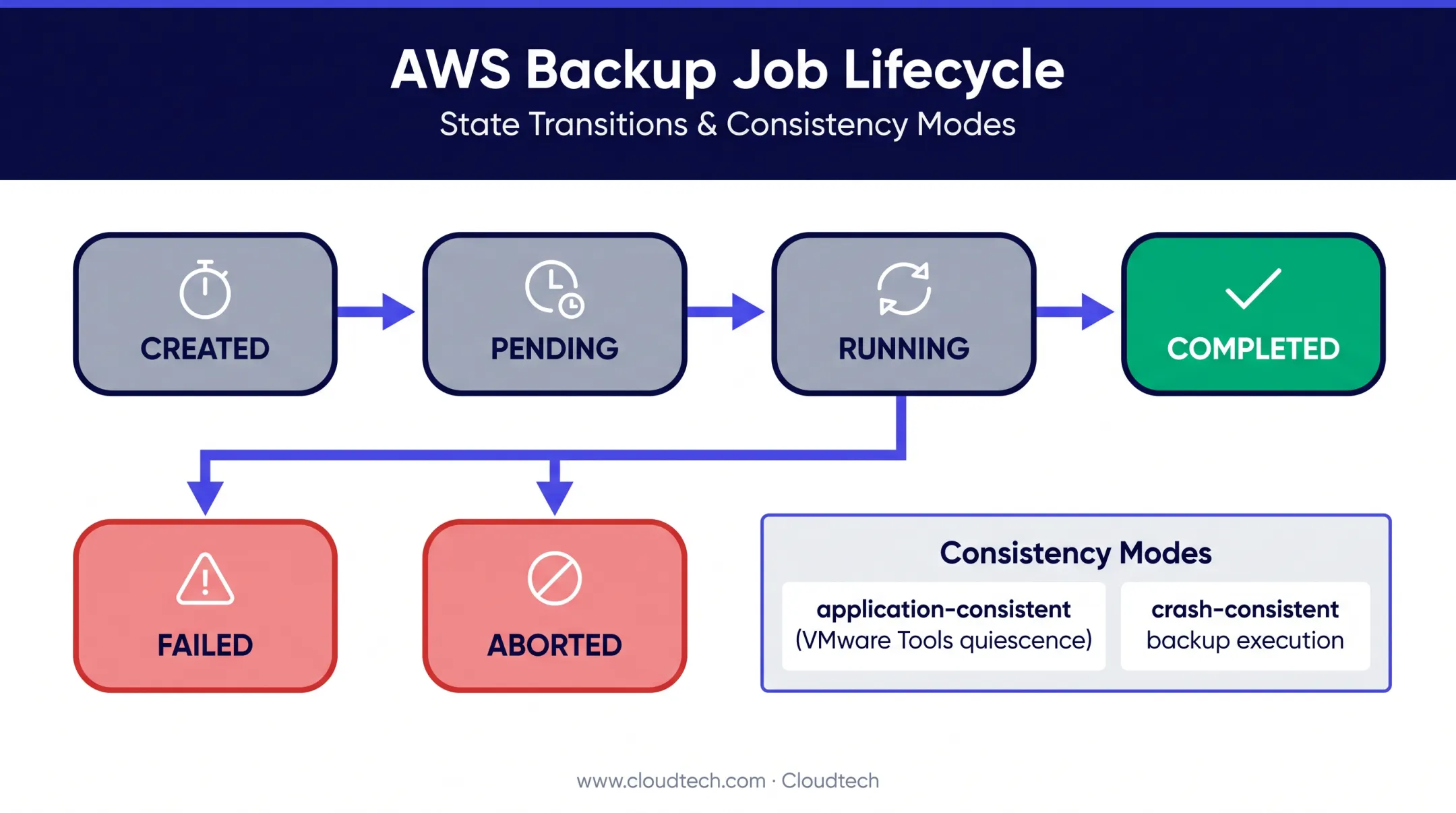

Backup jobs follow a defined lifecycle: CREATED → PENDING → RUNNING → COMPLETED (or FAILED/ABORTED). Review job status, recovery points, and protected resources regularly in the console.
AWS Backup prefers application-consistent backups via VMware Tools quiescence and falls back to crash-consistent when quiescence is unavailable. Confirm which mode your environment uses — it defines what "restorable" means for database-heavy VMs.
Monitoring During Use
Set up a recurring review covering:
- Failed or missed backup jobs
- Gateway and hypervisor health status
- Vault recovery points and storage growth
- Alert delivery (CloudWatch, email, or your ticketing system)
Watch for these practical failure signals:
- KMS or IAM permission errors
- Offline gateways or vCenter authentication failures
- DNS or firewall errors blocking communication
- Aborted jobs from concurrency limits (a single gateway supports up to 4 simultaneous backup or restore jobs, per AWS Backup's service quotas)
When something breaks, start with the job details and gateway status in the console, then check IAM/KMS permissions, vCenter credentials, VMware logs, and network paths in that order.
Restore and Validate
To restore, select a recovery point and choose the correct destination — full-VM, disk-level, or a supported AWS target — based on your recovery objective. After restoring, validate:
- Power state and network isolation
- Operating system integrity
- Application health and data recency
- Access permissions on the restored VM
Never delete a test VM, gateway, vault, or recovery point without checking retention and dependency implications first. Cleanup guidance should apply only to clearly non-production test resources.
Best Practices for Using AWS Backup for VMware Effectively
Match schedules to actual RPO/RTO needs. A production database VM and a dev/test VM shouldn't share the same backup frequency just because it's simpler to configure. Enforce least privilege everywhere:
- Dedicated VMware service accounts with only required permissions
- Customer-managed KMS keys where compliance demands it
- Documented credential rotation, not "set it and forget it" Plan for concurrency and network capacity. Gateways cap at 4 concurrent jobs, so stagger schedules across a large VM estate to avoid aborted jobs. AWS documents a minimum 100 Mbps upload bandwidth for on-premises VMware backup and restore—confirm your network can sustain that under load. Watch costs closely. VMware backup storage bills on a GB-day basis, and cold storage has a 90-day minimum retention before early deletion charges apply. AWS's budgeting guide for VMware environments includes a real cost breakdown; always verify current pricing for your Region. Test restores on a defined cadence. Include both routine recovery tests and at least one scenario simulating unavailable production VMware infrastructure. A backup plan that's never been restore-tested is a hypothesis, not a safety net. Keep a living runbook covering gateway ownership, vCenter credentials, network dependencies, escalation contacts, VM scope, and restore procedures. Teams without dedicated backup administrators often need outside help here. Cloudtech works alongside internal SMB teams to build and operate this design while leaving ownership with the people who know the environment best.
Conclusion
AWS Backup for VMware is a sequence you build: supported infrastructure, secure connectivity, deliberate resource selection, policy-based scheduling, active monitoring, and restores you've actually tested. Skip any link in that chain and the "automated protection" label stops meaning much.
Start with a representative pilot. Measure how backups and restores actually behave in your environment, validate current AWS limits and costs against your VM count, and only expand coverage once your runbook has proven itself under real conditions.
If your team needs a second set of hands to assess VMware protection requirements or implement AWS Backup correctly the first time, Cloudtech's AWS-certified consultants work specifically with US-based SMBs to design and operationalize hybrid backup strategies, without the enterprise price tag or the enterprise timeline.
Frequently Asked Questions
Does AWS run on VMware?
No, not inherently. AWS Backup can protect supported VMware environments (on-premises, VMware Cloud on AWS, or VMware Cloud on AWS Outposts). AWS compute itself runs on native EC2, not VMware.
What is the best backup software for VMware?
It depends on your RPO/RTO targets, need for file-level recovery, and scale. If you already run workloads on AWS or want centralized policy and vault management, AWS Backup is often the strongest fit.
Is VMware Cloud on AWS still available?
Yes. As of April 2024, AWS and its partners no longer resell it directly; the service runs through Broadcom. Confirm current availability, Regions, and renewal options with Broadcom or an authorized reseller.
How do I back up VMware VMs with AWS Backup?
Enable VMware protection, deploy and register the AWS Backup gateway, then connect your vCenter hypervisor. Select the VMs to protect, attach a backup plan and vault, and verify recovery points in the console.
Can AWS Backup restore VMware virtual machines?
Yes. AWS Backup supports full-VM and disk-level restore to VMware, VMware Cloud on AWS, or VMware Cloud on AWS Outposts, depending on your environment. Confirm current restore destinations in AWS documentation before you rely on a specific path.
